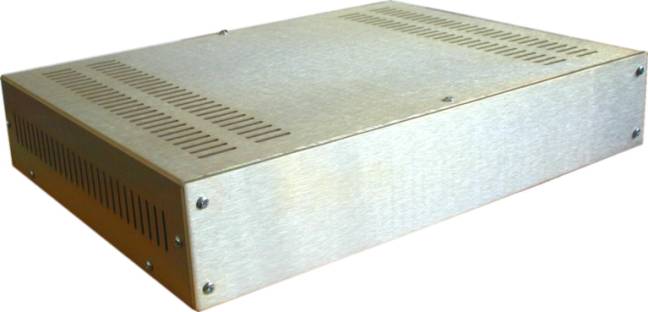

The new STANDARD ENCLOSURES 20 Series provides an economical, off-the-shelf way to package table-top instruments and HI-FI equipment. This series is made from a .09" thick aluminum base to handle heavy components. To achieve a high quality appearance, we include the .12" thick front panel and painted top cover with textured finish in either black or gray.
  Our flexible manufacturing method allows our customers to request a modification with very low cost. We can punch holes in the front, rear and bottom or even make any size you want.

pic pic

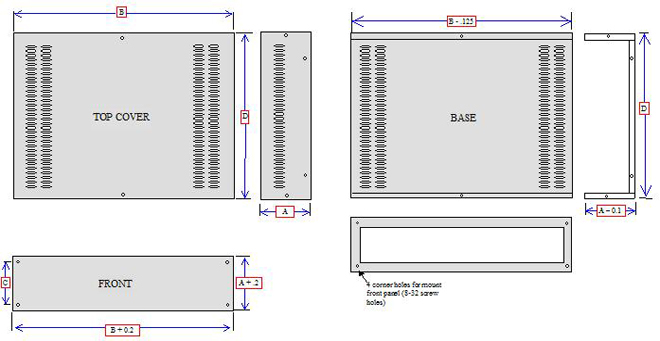

  Front panel is 0.125" aluminum alloy (5052-H32) with brushed finish in black or clear anodize. Top and rear cover are 0.06" thick aluminum painted in black or gray, and base tray is 0.09" thick aluminum alloy (5052-H32) painted. Aluminum handles and thicker front panels are optional.
  All screw holes are installed with 6-32 PEM press-nuts to increase strength and reliability.
  Standard vent holes are punched on base.

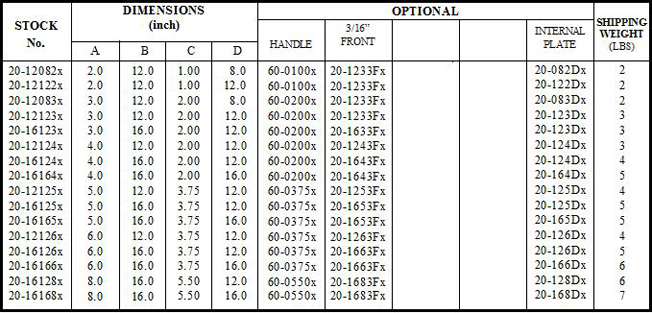

Two rows of vent holes are punched on side panels. Please choose divider plate, handles, or thicker front panel from table below.

Add suffix-x for your choice of color or finish:

-B black anodize front & black paint
-G clear anodize front & gray paint
-E beige paint
-A gold alodine
-N clear alodine
