EMI/RFI SHIELDED CHASSIS - 14 Series

pic

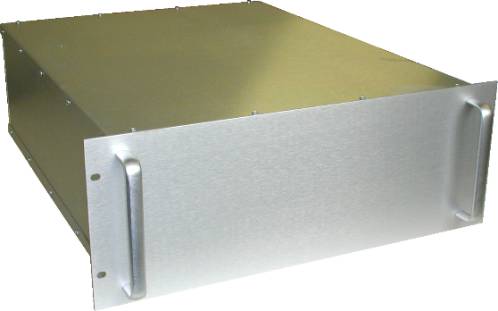

  Series 14 rack-mount chassis have been carefully engineered and improved to provide both reliable EMI/RFI shielding and structural rigidity. Special treatment has been used for all panel contact areas to guarantee the shielding. Test data from our chassis reached 70dB electrical noise attenuation for varying frequencies. Our EMI/RFI shielded chassis are specially designed by our electrical engineering team with expertise in RFI shielding and testing. Par-Metal can custom manufacture, modify, and test the EMI/RFI shielded enclosures to meet your specifications. We can also save you time and money by delivering your custom order in lead times of 1 to 3 weeks.

pic pic
pic

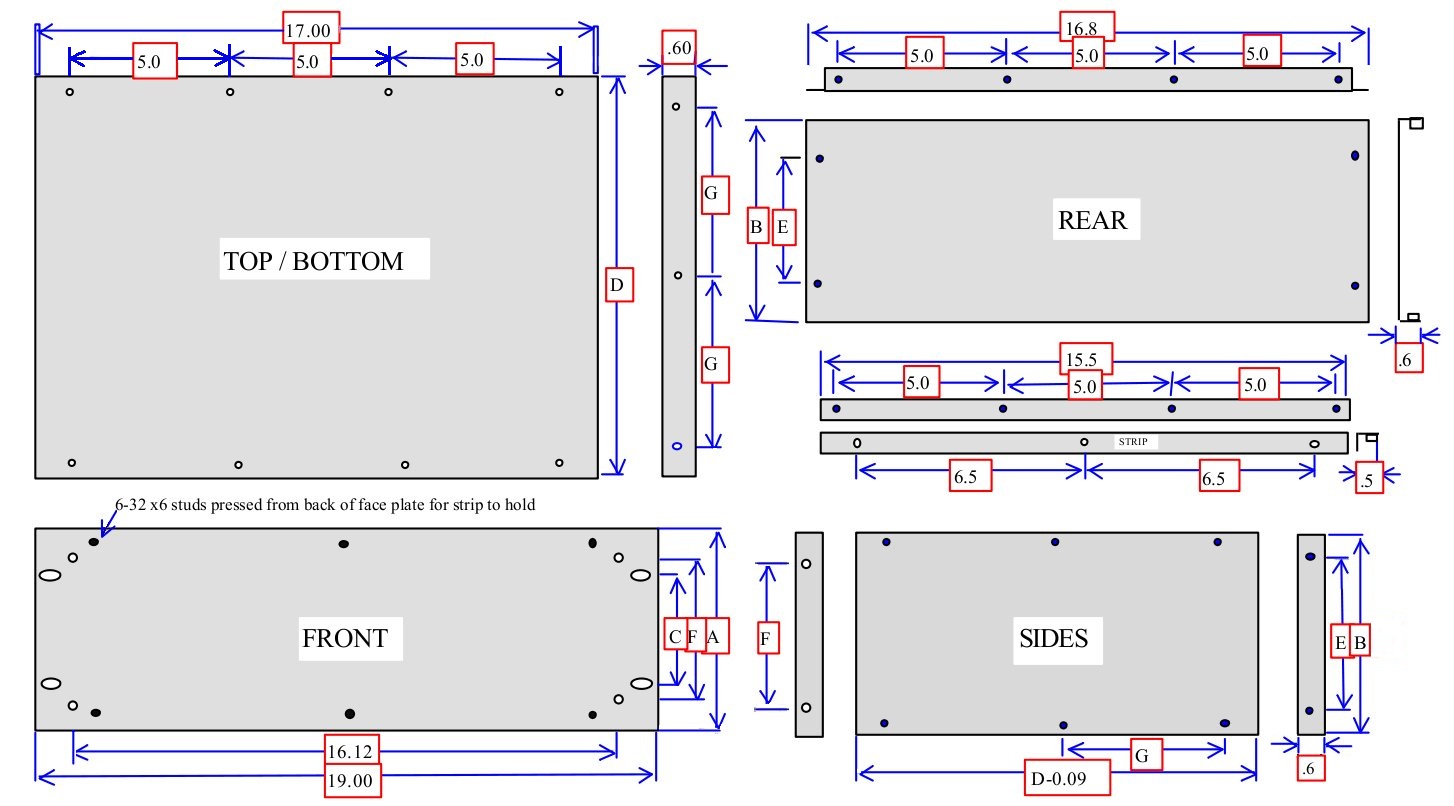

NOTES:

  Front panel is 0.125" aluminum alloy (5052-H32) with brushed finish. All other panels are 0.09" thick aluminum alloy (5052-H32). Handles and hardware are included.
  Press nuts (6-32) and SS screws with a maximum distance of 5" are installed on all panels for strength and shielding.

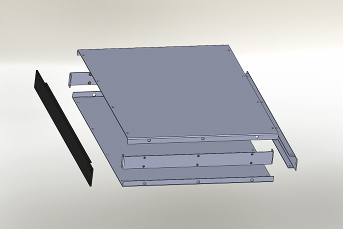

  Single rack unit chassis is made with extruded front panel. The strip is part of the front panel. In order to increase the usable height of the chassis, the top, bottom, and rear panels are reduced to .062" thick aluminum.



Add suffix-x for your choice of color or finish:

 -A alodine (EMI / RFI shielded)
 -B black anodize (no EMI / RFI shielding)
 -C clear anodize (no EMI / RFI shielding)
 -E painted beige (mask for EMI / RFI shielding)
 -G painted gray (mask for EMI / RFI shielding)
 -N clear alodine (EMI / RFI shielding)
 -P painted black (mask for EMI / RFI shielding)
 -S black anodize front and gold alodine body
