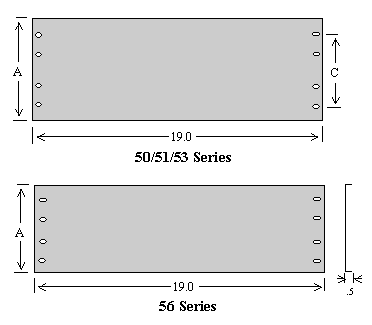

FRONT PANELS - 50 Series

  These standard blank panels are carefully fabricated to meet the specifications of EIA standards. The brushed aluminum with 0.125" and .18" thick (5052-H32 material) front panels have anodized, alodine, and painted finishes. Steel panels and formed panels are painted only.

  The brushed aluminum front panels with anodized finish have very high corrosion resistance and excellent appearance.

  The formed panels are added to our vertical and other racks as filler panels or back panels. They are made from 16 gauge cold roll steel with a reinforced bend on the top and bottom edges.

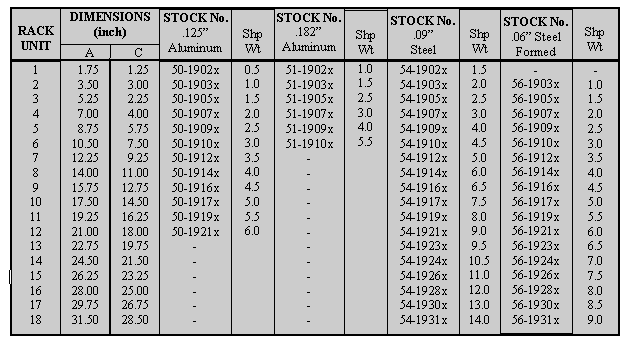

  Ordering your front panels is as easy as ordering our regular enclosures. Just use the stock numbers shown below and indicate with the suffix - X what choice of finish you want. These front panels can also be used as filler panels for any other standard racks. Please call for vented panels or custom sizes.


Suffix -x

-A gold alodine
-B black anodize
-C clear anodize
-E painted beige
-G painted gray


-N clear alodine
-P painted black
-R painted blue
-U unfinished
